Overview
An accurate and flexible instrument for testing the stretch, growth and recovery properties of knitted and woven fabrics. Calibrated to ISO 17025, for confidence in the repeatability of your results.
Brochure(s)
Got a question about this solution?
Get in touch and speak to one of our Technical Sales Engineers now...
Speak to an expert
Features
Portable or wall mounted
Supplied as either portable (on wheels) or wall-mounted to suit your laboratory environment.
Complete Flexibility
FlexiFrame allows for testing of both knitted and woven fabrics on any station. Current equivalents on the market require two separate instruments to meet
Range of accessories
A range of accessories included, such as hanger assembly and stackable weights - for everything you need to test to ASTM D3107, Ralph Lauren and ASTM D2594
Standardised and calibrated
Standardised and calibrated, giving you and your customers confidence in the quality and repeatability of your results.
Dimensional Stability Ruler
A ruler which measures stretch and shrinkage in both distance and percentage is an effective way to simplify the measurement of results.
Detachable timers
Equipped with a timer which can be numbered, so you can move away from the instrument and complete other tasks
Additional information

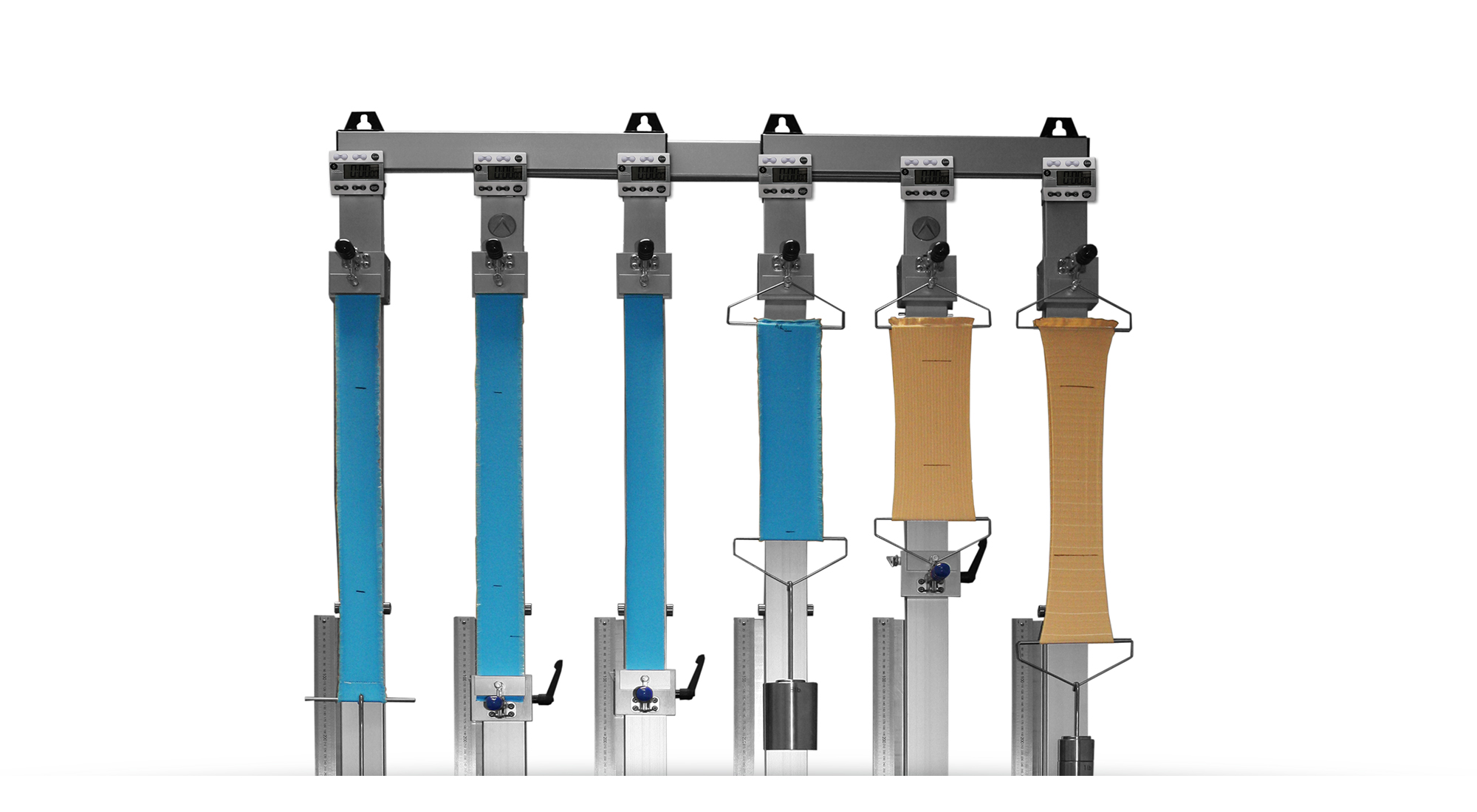

FlexiFrame is a stretch and recovery instrument. Stretch and recovery testing is used to determine the stretch, comfort and fit of a fabric, as well as understanding how well the fabric recovers.
FlexiFrame offers flexible and accurate static extension testing. Each of the stations is totally interchangeable, allowing any station to do any test at any one time.
FlexiFrame meets the requirements of a broad range of standards, including ASTM Ralph Lauren.
User error and calculation time are minimised by using the stretch and recovery ruler which allows the user to measure the percentage stretch and recovery directly without calculation. FlexiFrame has an extensive range of accessories, meaning testing can be done to an assortment of standards.
Material / End use
Technical Specification
Specifications are provided as a guideline only and are subject to change.
| Conditioned atmosphere recommended | Yes |
|---|---|
| Positioning | Wall mounted and floor standing models available |
| Space requirements | |
| Wheel Based FlexiFrame (6 Stations) |
Height 175.0cm Width 128.9cm Depth 81.0cm |
| Wall Mounted FlexiFrame (3 Stations) |
Height 168.6cm Width 55.3cm Depth 20.5cm |
| Approximate net weight | |
| Wheel Based FlexiFrame (6 Stations) | 48.3kg |
| Wall Mounted FlexiFrame (3 Stations) | 15.9kg |
| Power | Not required |
